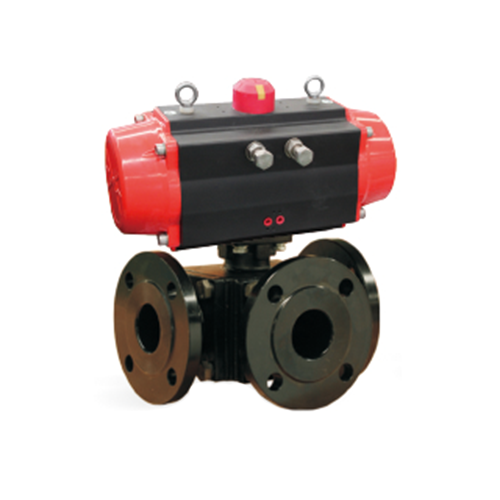

Three-way Ball Valve

Valve Specific Information
• Size:1/2"-4" (DN15-DN100)
• Pressure:PN16/25/40
• Suitable flange:JB/T79. ASME B16.5.
GB/T9113.HG/T20592. EN1092
• Connection style: Flanged, Screw
• Body material: Stainless steel, Carbon steel, UPVC
• Seal material: Reinforced PTFE,
• Suitable medium: Water, Steam, oil, Nitric acid
Usage and construction:
L style three-way ball valve can
be used for changing the direction of
the flow, connecting the two way,
T style three-way ball valve can
be used for diffluence, confluence and
changing the flow direction, and T
style not only can connect three
ways but also can connect any of
two ways among them. Generally
three-way ball valve use the
construction of two-seats,
otherwise it can use the
construction of four valve seats
according to your requests.
