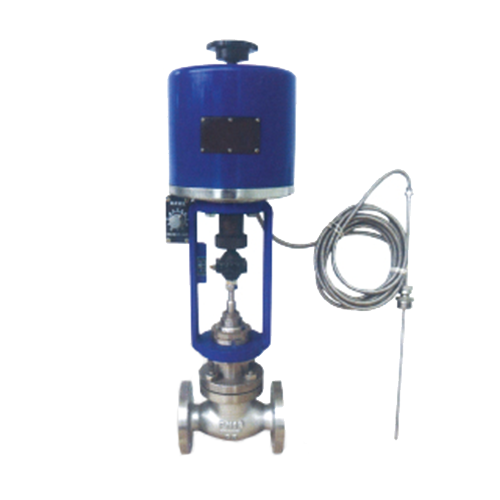

Valve Specific Information
• Size: 3/4”~ 8"(DN20-DN200)
• Working Pressure: ANSI CLASS15O,
300 (PN 10,16, 25,40)
• Connection Type Flanged
• Fluid temperature
      soft seat: -20~+150C
      metal seat: -25~+200C
• Inherent flow feature: quick opening, straight line
• Regulation accuracy: 5%
• Volt: AC220/50HZ
• Body Material: Stainless steel, Carbon steel
• Plated Material: Stainless steel
• Seal: PTFE/PPL/ Stainless steel/Hard alloy
• Design Standard: ASME B 16.34,JB/T11049-2010
